Low Bend Radius Hydraulic PTFE Hose SAE100 R14
The SINOPULSE PTFE Hydraulic Hose SAE100R14 is designed for applications requiring excellent chemical resistance and high-temperature tolerance. Made from Polytetrafluoroethylene (PTFE), a synthetic fluoropolymer, this hose provides outstanding durability and performance. PTFE's non-stick properties, combined with its hydrophobic and high-density nature, make it the ideal solution for handling aggressive chemicals and extreme temperatures.
Our PTFE hydraulic hose features a stainless steel 304 braided cover, enhancing its strength and resistance to abrasion. It is perfect for a wide range of industries, including chemical processing, food and beverage, pharmaceuticals, and more.
PTFE HOSE
Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene. Being hydrophobic, non-wetting, high density and resistant to high temperatures, PTFE is an incredibly versatile material with a wide variety of applications, though it's perhaps best-known for its non-stick properties. SINOPULSE PTFE hose offers excellent chemical resisitance which have the wide application portfolio for the majority media types.Hydraulic hose SAE100R14

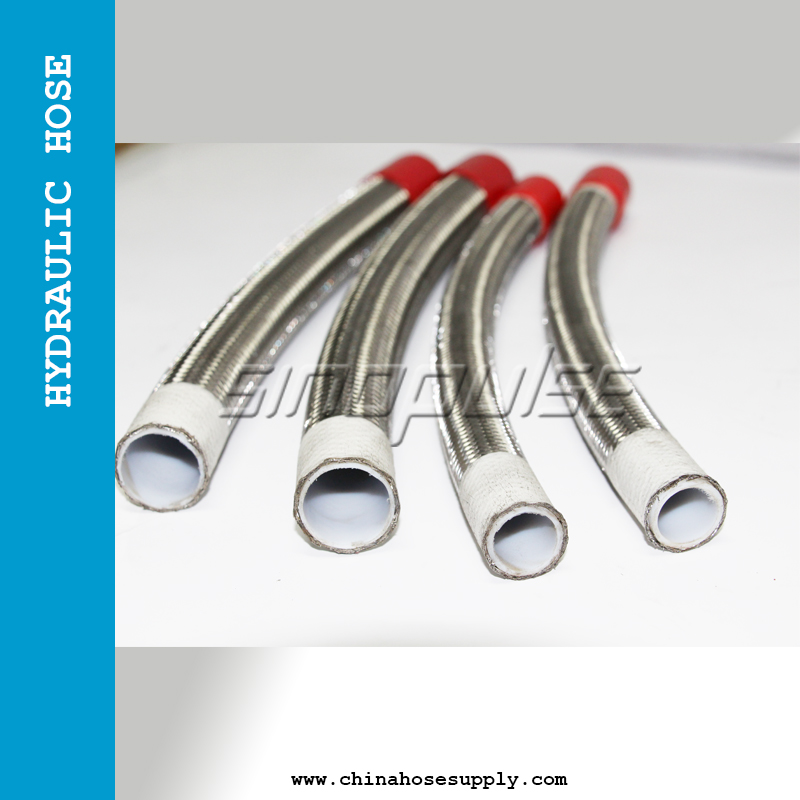

The Hydraulic hose SAE100R14 with stainless steel 304 braided cover.Hydraulic hose SAE100R14 Construction:
Tube: Smooth temperature chemical resistant PTFE materials tube Reinforcement: Braided with stainless steel. . Temperature: -60℃ to +260 ℃
Hydraulic hose SAE100R14 Specification:
| Part No. | I.D. | O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | mm |
| R14-02 | 1/8″ | 3.5 | 6.6 | 32.6 | 4727 | 97.8 | 14181 | 51 | 1.00 |
| R14-03 | 3/16″ | 4.8 | 8.0 | 24.7 | 3582 | 74.1 | 10745 | 75 | 0.85 |
| R14-04 | 1/4″ | 6.3 | 9.2 | 21.4 | 3103 | 64.2 | 9309 | 81 | 0.85 |
| R14-05 | 5/16″ | 7.9 | 11.0 | 19.1 | 2770 | 57.3 | 8309 | 92 | 0.85 |
| R14-06 | 3/8″ | 9.7 | 12.8 | 18.8 | 2726 | 56.4 | 8178 | 131 | 0.85 |
| R14-08 | 1/2″ | 12.7 | 15.9 | 10.8 | 1566 | 32.4 | 4698 | 182 | 1.00 |
| R14-10 | 5/8″ | 15.8 | 19.2 | 12.9 | 1871 | 38.7 | 5612 | 211 | 1.00 |
| R14-12 | 3/4″ | 19.0 | 22.7 | 7.9 | 1146 | 23.7 | 3437 | 338 | 1.20 |
| R14-14 | 7/8″ | 22.3 | 26.0 | 6.1 | 885 | 18.3 | 2654 | 421 | 1.20 |
| R14-16 | 1″ | 25.4 | 29.3 | 4.8 | 696 | 14.4 | 2088 | 539 | 1.50 |
1. What is PTFE Hydraulic Hose SAE100R14 made of?
The PTFE Hydraulic Hose SAE100R14 is made of Polytetrafluoroethylene (PTFE), a synthetic fluoropolymer that is highly resistant to chemicals and extreme temperatures. The hose is reinforced with a stainless steel 304 braided cover, providing added strength and durability.
2. What are the temperature limits of PTFE Hydraulic Hose SAE100R14?
This hose can withstand extreme temperatures, ranging from -60°C to +260°C, making it suitable for both low and high-temperature applications.
3. What industries use PTFE Hydraulic Hose SAE100R14?
PTFE Hydraulic Hose SAE100R14 is commonly used in industries that handle aggressive fluids, such as chemical processing, pharmaceuticals, food and beverage, and high-temperature systems. Its high chemical resistance makes it ideal for these sectors.
4. What are the main advantages of using PTFE in this hose?
PTFE offers excellent chemical resistance, non-stick properties, and the ability to withstand high temperatures. These qualities make PTFE hoses perfect for handling a wide range of aggressive fluids and gases while maintaining long-lasting performance.
5. What is the working pressure of the PTFE Hydraulic Hose SAE100R14?
The working pressure (W.P.) of the PTFE Hydraulic Hose SAE100R14 varies by size, but it generally ranges from 696 PSI (4.8 MPa) to 4727 PSI (32.6 MPa), depending on the hose diameter. You can refer to the product specifications for detailed pressure ratings for each size.
6. What is the burst pressure of the PTFE Hydraulic Hose SAE100R14?
The burst pressure (B.P.) of the PTFE Hydraulic Hose SAE100R14 can reach up to 14181 PSI (97.8 MPa), providing excellent safety margins for your hydraulic systems.
7. How flexible is the PTFE Hydraulic Hose SAE100R14?
The hose is relatively flexible and can be bent to a certain degree based on the bend radius (B.R.), which varies by size. For example, the bend radius for the 1/8" size is 51 mm, and for the 1" size, it is 539 mm. Flexibility ensures easy installation in confined spaces.
8. What is the weight of the PTFE Hydraulic Hose SAE100R14?
The weight of the hose varies by size, with smaller sizes such as 1/8" weighing approximately 1.00 kg/m, while larger sizes like 1" weigh about 1.50 kg/m. This ensures that the hose remains manageable and easy to handle during installation.
9. Is the PTFE Hydraulic Hose SAE100R14 resistant to all chemicals?
Yes, PTFE has excellent resistance to a broad range of chemicals, including acids, solvents, oils, and other harsh substances. This makes the hose highly versatile for applications in chemical processing, food production, and pharmaceuticals.
10. How do I choose the correct size for my application?
Selecting the correct size depends on your system's requirements, including flow rate, pressure, and bend radius. You can refer to the size chart provided in the product details to match the correct hose size with your application needs.
11. How should I maintain PTFE Hydraulic Hose SAE100R14?
Regular inspection is important to ensure the hose is not exposed to excessive wear or damage. Ensure that the hose is not subject to excessive bending or exposure to high-impact forces. If you notice any signs of wear or damage, it is important to replace the hose promptly.
12. Can the PTFE Hydraulic Hose SAE100R14 be used for food processing applications?
Yes, PTFE is food-safe and non-reactive, making this hose suitable for food processing applications. It is resistant to contamination and maintains product purity, which is essential in the food industry.
13. Is this hose suitable for both high-pressure and low-pressure systems?
Yes, the PTFE Hydraulic Hose SAE100R14 is designed to handle both high-pressure and low-pressure hydraulic systems, providing reliable performance across various pressure ranges.
14. How do I install the PTFE Hydraulic Hose SAE100R14?
Installation of the PTFE Hydraulic Hose SAE100R14 should be done by professionals who are familiar with hydraulic systems. Ensure that the hose is installed with the appropriate fittings, and avoid over-bending, which may affect its performance.
15. Can I use the PTFE Hydraulic Hose SAE100R14 in outdoor environments?
Yes, the PTFE Hydraulic Hose SAE100R14 can be used in outdoor environments, but it is essential to consider its exposure to weather conditions, especially UV radiation. While PTFE is durable, additional protective covers can be used for applications exposed to harsh outdoor elements.
